    Multifunctional Operating Room Equipment Anesthesia Machine With 2 Vaporizers

    Ask Lasest Price
    Brand Name : MeCan
    Model Number : MC-01-B
    Certification : ISO
    Price : Inquiry
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per week
    Delivery Time : 3-15 working dates
    • Product Details
    • Company Profile

    Multifunctional Operating Room Equipment Anesthesia Machine With 2 Vaporizers

    Multifunctional Operating Room Equipment Anesthesia Machine With 2 Vaporizers


    Model : MC-01-B


    Specification of Anesthesia Device:


    Prospective service and support

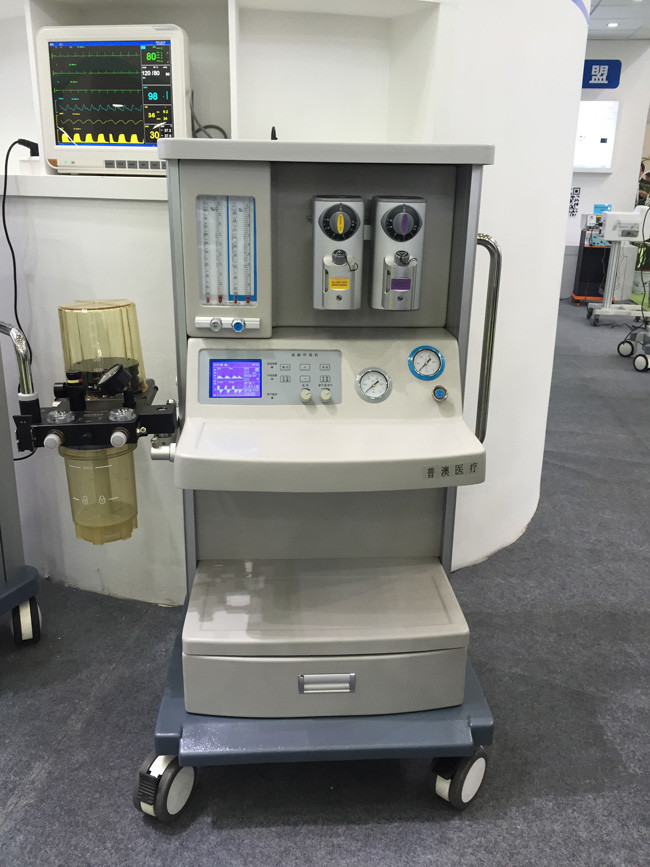

    This MC-01-B Anesthesia Machine is equipped with an accurate dedicated anaesthetic vaporizer and a safety device for preventing cyanosis and necessary alarm system. During the anesthesia, the patient’s respiratory functions can be managed by using a microcomputer controlled pneumatic electrically controlled synchronizing anesthesia respirator. Each connection part of the whole machine is a standard interface. A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.


    TECHNIQUES SPECIFICATIONS
    Physical specifications
    Screen:5.4'' Display Screen
    SuitableAdult & Child
    Mode:pneumatically powered and electrically controlled system
    Working Mode:Closed; Semi-Closed; Semi-Open
    CircuitBreathing circuit integrated standards
    Tube:4Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min
    Trolley:Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
    Drawer unitTwo drawer totally extractable
    Technical Specifications:
    Gas requirement:Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa.
    safety valve<12.5 kPa
    Respiratory Rate1~99bpm
    Flow meterO2:0.1~10L/Min, N2O:0.1~10L/Min
    oxygen concentration in the mixed gas N2O/O2> 21%
    Oxygen Flush:25~75 L/min
    modes of ventilationA/C, IPPV, SIPPV, IMV, SIMV, MANUAL
    I/E Ratio:4:1 ~ 1:10, Has the inverse ratio ventilation
    Tidal Volume0~1500ML
    Inspiratory trigger pressure-0.1kPa~1.0kPa
    Inspiratory Plateau:0~1s
    O2 Concentration:21%~100%
    Maximum safety pressure:≤ 12.5 kPa
    Pressure limit range:0 ~ 6.0 kPa
    Airway pressure alarm: Audible and visual and with yellow and red color indicatingLower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa
    ±0.2 kPa
    Tidal volume alarm: Audible and visual and with yellow and red color indicatingupper alarm: 50 to 2000ml, lower alarm: 0~1800ml
    Power Supply AlarmAc/dc power supply are after failing to send out alarm immediately
    Alarm Time: keep >120s
    The airway pressure continues to be higher than 15 hPa ±1 hPa for 15s±1s, then the machine will raise an audible alarm, the pressure will be displayed in red and the continuous high pressure red alarm wording is displayed on the screen of the anesthetic respirator.
    Operating conditions
    Ambient temperature:10 ~ 40oC
    Relative humidity:no higher than 80 %
    Atmospheric pressure:860 hPa ~ 1060 hPa
    Power requirement:100-120 Vac, 50/60 Hz;
    Air source requirement:Medical oxygen and laughing gas with a rated pressure ranging from 0.3 to 0.5MPa.
    Attention: the AC power supply used for the anesthesia machine must be well grounded.
    Attention: the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System.
    Storage
    Ambient temperature:-15oC ~ +50oC
    Relative humidity:no higher than 95 %
    Atmospheric pressure:86 kPa ~ 106 kPa.
     It should be stored in a room without corrosive gas and well ventilated
    Package
    packaging boxcomply with the requirement of GB/T 15464
     Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation
     Moisture protection and rain protection to ensure that product is protected from natural damage.
    Safty & Alarm
    Oxygen AlarmIt alarms when the oxygen supply from pipe or cylinders lower than 0.2MPa
    Ventilation Volume AlarmLower: 0~12L/Min; Up: 18L/ Min
    Power AlarmIt Alrmas while AC and DC supply failure ; Keep alraming time: >120s
    Air Tract Pressure AlarmLower: 0.2kPa ~5.0 kPa; Up: 0.3kPa ~ 6.0kPa
