    First Aid Equipment Single Channel 12 Lead Portable ECG Machine with Color Display

    Ask Lasest Price
    Brand Name : MeCan
    Model Number : ECG-3301
    Certification : ISO
    Price : Inquiry
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,
    Supply Ability : 500 sets per week
    Delivery Time : 3-15 working dates
    • Product Details
    • Company Profile

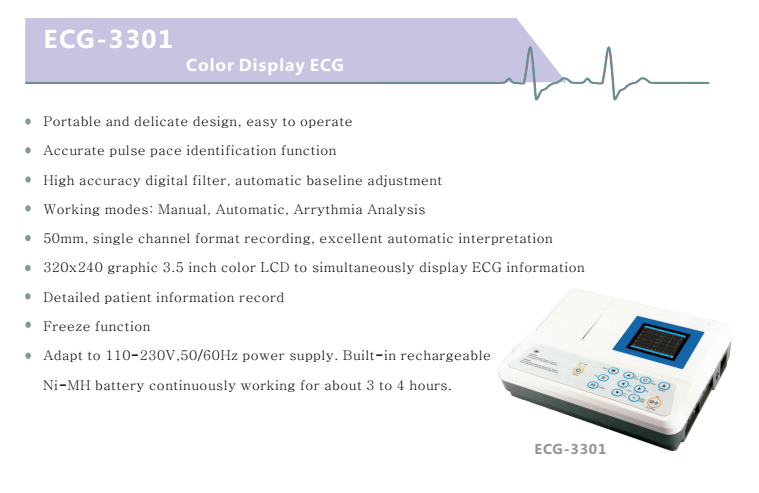

    First Aid Equipment Single Channel 12 Lead Portable ECG Machine with Color Display

    Single Channel 12 Leads Portable Ecg Machine Color Display Portable Ecg Product

    Model : ECG-3301


    Features :

    ● Portable delicate design and very easy to operate
    ● Accurate pulse pace identification function and excellent auto-interpretation function
    ● High accuracy digital filter, auto baseline adjustment
    ● 12 leads synchronously acquisition and display; Recording mode 1ch, 1ch+
    ● Working modes: Manual / Auto / Analysis
    ● 320×240 graphic, 3.5 inch color LCD to display detailed ECG information
    ● Adapt to 110-230V, 50/60Hz power supply
    ● Built-in rechargeable Ni-MH battery supports continuous work for about 3 to 4 hours.
    ● Real-time freeze function
    ● 50mm*20m high resolution thermal printing
    ● Language : English, Chinese, French, Italian, Spanish, Russian
    ● 300mm*230mm*75mm, 2.8kgs



    Technical Specification:

    LeadStandard 12 leadsTime constant≥3.2s
    Lead acquisition12bit/1000Hz (synchronously 12 leads)Frequency response0.05~160Hz(-3db)
    Work modeMan / Auto/AnalysisNoise level<15μVp-p
    Filter

    AC Filter : 50Hz / 60Hz
    EMG Filter : 25Hz / 45Hz
    Anti-Drift Filter : 0.15Hz (Adaptive)

    Inter-channel Interference≤0.5mm
    CMMR≥120dB (with AC FILTER)Sensitivity2.5,5,10,20, 40, Auto (mm/mV)
    Input circuit

    Floating; Protection circuit against
    Defibrillator effect

    Recording mode

    1ch,1ch+
    Default Man. Mode is 1ch format
    Default Auto. Mode is 1ch+ format

    Input Impedance≥50MΩPaper speed6.25,12.5,25,50mm/s(±3%)
    Input circuit current≤0.05μAPaper50mm *20m Roll paper
    Patient current leakage<10μACommunicationRS232/ USB port, LAN ( not available )
    Calibrating voltage1mV±2%Power Supply

    AC 110-230V(±10%),50/60Hz(±1Hz),40VA
    DC Built-in rechargeable battery,12V(1500mAh)

    Voltage tolerance≥±500mVDimension/Weight300mm×230mm×75mm / 2.8Kg




    Package:

    1 unit / small carton : 40cm*34cm*22cm, net weight 2.8kgs, gross weight 5kgs

    4 units / big carton : 70cm*41cm*46cm, net weight 12kgs, gross weight 22kgs
